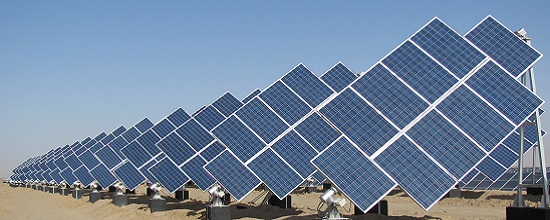

Inclined Angle Single Axis Tracker System
Inclined Angle Single Axis Tracker System：HY-20ST-I25
Contact Us
| HY-20ST-I25 TECHNICAL Datasheet | |
| Product Model | HY-20ST-I(Max25°) |
| Surface Area | Up to 22m² |
| Max inclined angle （N-S） | Up to 25° |
| Tracking accuracy | ±1.5° |
| Tracking type | Standalone Single axis tracker |
| Control type | Wireless PLC+MCU+Angle sensor |
| Module Arrangement | Landscape or Portrait |
| Installed solar panel type | 250Wp--330Wp |
| Installed solar panel number | Up to 12 modules |
| Tracking control system power | 20W per tracker |
| Tracking range（E-W） | -45°--- +45° |
| Motor voltage | DC24V or AC220V/AC110V |
| Electrical cabinets | IP65 |
| Maximum working wind speed | 25 m/s |
| The maximum wind speed | 42 m/s |
| The power output increasing | Up to 25% |
| Life time | >25years |
| Steel parts surface treatment | Hot dip galvanized |
| Foundation Type Strip foundation, Filling pile, | Screw Pile |
| Qualifications | ISO9001 |
| Warranty | Mechanical parts:10 years; |
| Electrical parts:5 years; | (Extend warranty can be provided at an additional cost) |
